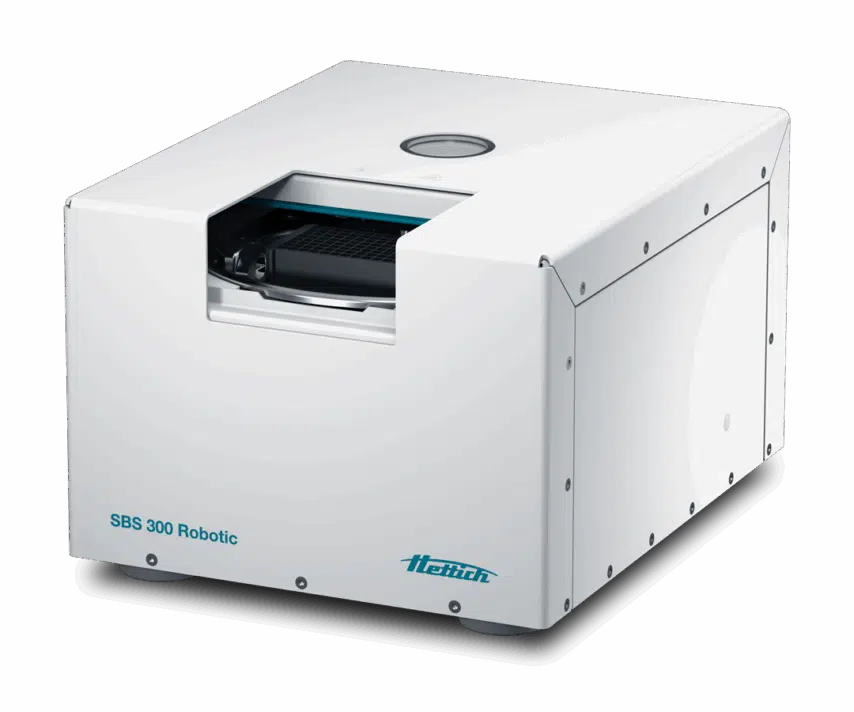

The SBS 300 Robotic is a front-loading centrifuge, developed and optimized for microplates in high-throughput screening. It can be loaded frontally via the xy-axes, as well as via the z-axis and is particularly suitable for collaborative robotic systems.
Essential and modular
The SBS 300 Robotic is a front-loading centrifuge, developed and optimized for microplates in high-throughput screening. It can be loaded frontally via the xy-axes, as well as via the z-axis and is particularly suitable for collaborative robotic systems.
The compact design opens up a wide range of applications in automation. The robust construction ensures increased safety and durability – especially in high throughput and continual use environments.
The SBS 300 R ROBOTIC has a modular design and can be cooled by an external cooling unit.
Highlights
Features
Life Science

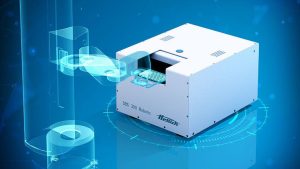

Typical applications for the automated centrifuge include high-throughput screening (HTS) in pharmaceutical and crop protection research, food and cell analysis or the screening of bioreactions. The modular design of the SBS 300 opens up flexible integration options.
Industry
The SBS 300 Robotic is ideal for use wherever samples are prepared for subsequent analysis in microtiter plate format. Organic and inorganic molecules can be separated due to the high centrifugal force.
Facilities
| SBS 300 ROBOTIC air cooled |
SBS 300 R ROBOTIC external cooling |
|
|---|---|---|
| voltage *) | 200-240 V 1~ | 200-240 V 1~ |
| frequency | 50-60 Hz | 50-60 Hz |
| max. consumption | 1.400 VA | 1.400 VA |
| max. capacity | 2 microtiter plates (max. 128 x 86 x 46 mm) | 2 microtiter plates (max. 128 x 86 x 46 mm) |
| max. RPM | 6,300 min-1 | 6,300 min-1 |
| max. RCF | 4,615 | 4,615 |
| Permissible density of the centrifuged material | 1.2 kg/dm3 | 1.2 kg/dm3 |
| dimensions (W x D x H) | 412 x 508 x 311 mm | 411 x 508 x 311 mm |
| weight | approx. 80 kg | approx. 80 kg |
| Cat. No. | 8300 | 8305 |
| Cat. No. Sets | 8300-S01 | 8305-S01 |
