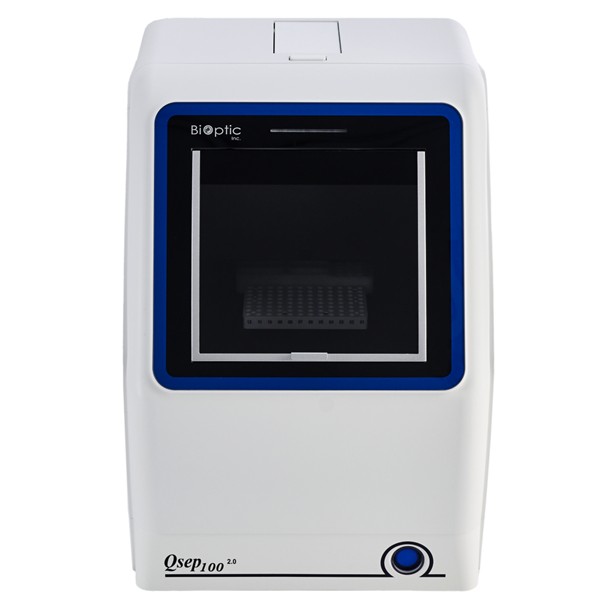

Qsep100 2.0 Bio-Fragment Analyzer ushers in a new era of capillary gel electrophoresis, combining patented LEDIF detection with full automation to deliver high-resolution, high-sensitivity, and highly reproducible analysis.
• The NEW standard-sized capillary electrophoresis Bio-Fragment Analyzer for DNA, RNA and protein.
• Qsep100 2.0 supports from 1~384 sample(customized) capacity and high sample flexibility.
• 10+ types of cartridges can be easily exchanged between various applications.
• The provided quantitative method delivers fragment size and concentration information in one run.
Qsep100 2.0 Bio-Fragment Analyzer ushers in a new era of capillary gel electrophoresis, combining patented LEDIF detection with full automation to deliver high-resolution, high-sensitivity, and highly reproducible analysis. Its versatile applications cover DNA, RNA, and protein fragments, empowering research across multiple fields. With ready-to-use cartridges, samples in standard PCR tubes or 96-well plates can be directly placed into the instrument for analysis, enabling preparation and operation within three minutes with flexible control of injection, voltage, and run conditions. The system supports throughput from a single sample up to 96 (expandable to 384-well), offering unmatched scalability and efficiency for modern laboratories.
| Specification | Highlights | ||
| Detection | Fluorescence | Automated Sampling | 1~96 samples (384-well Customizable) |
| Light Source | LED | Rapid Analysis | 2~7 mins/ sample (below 1 kb) |
| Separated Voltage | 1~15 kV | Resolution | 1~4 bp (below 500 bp) |
| Connection | USB | Sensitivity | 5 pg/ µL
*1pg/ µL (If diluted in ddH2O) |
| Power Source | AC 100~240 V | Minimum Sample Volume | 2 µL (Micro Vial, C104250)
10 µL (0.1 mL Tube) 10 µL (0.2 mL Tube) |
| Power | 120 W | Sample Consumption | ≤ 1 pL |
| System Weight | 16.5 kg | Software:
Q-Analyzer |
Relative qualitative and quantitative analysis Electrophoresis Gel view image Customer-oriented report |
| Dimension | 41*30*43 cm | ||
